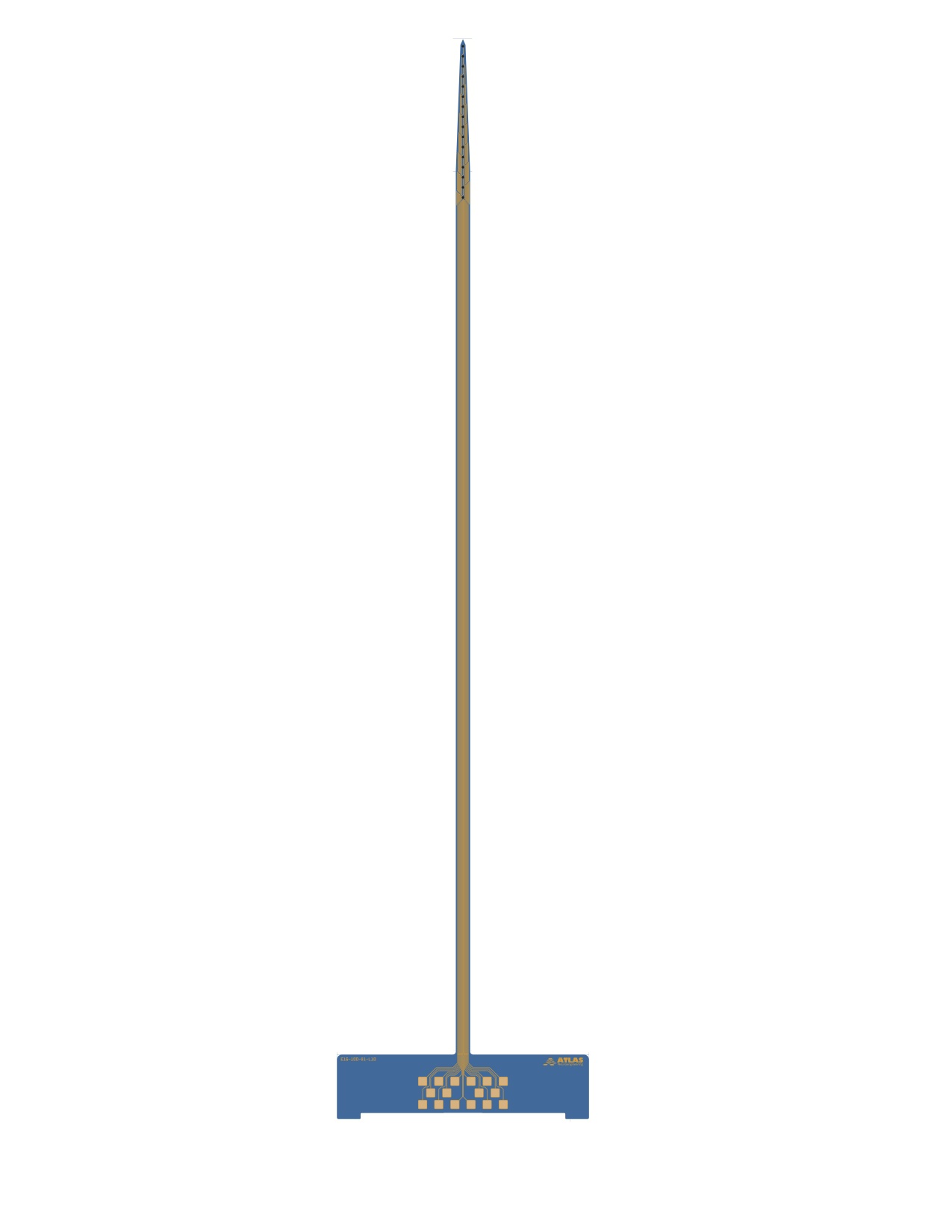

Shaft length (LTotal)
10 mm
Number of shafts (NShaft)
1
Shaft width (WShaft)
140 µm

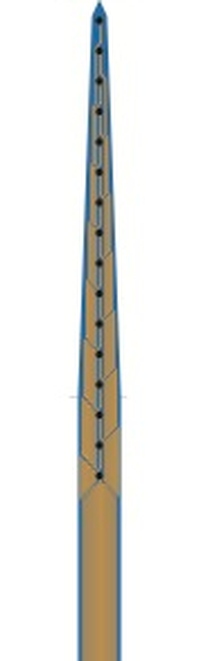

Number of electrodes (NEl)
16
Electrode Pitch (PEl)
100 µm
Electrode Length (LEl)
1500 µm
Electrode size (DEl), material (EM), probe thickness (T)
Ø 25 µm, Pt, 50 µm
Size of the optional, internal reference electrode
