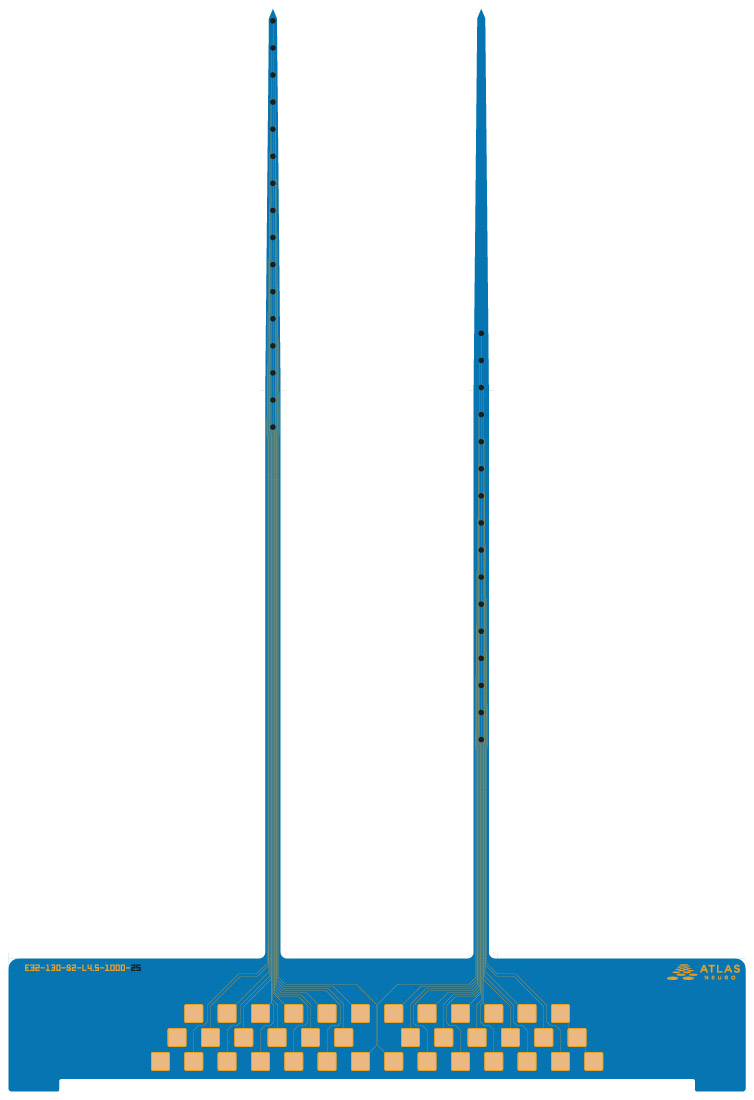

Shaft length (LTotal)
4.5 mm
Number of shafts (NShaft)
2
Shaft pitch (PShaft)
1000 µm
Shaft width (WShaft)
75 µm
Number of electrodes (NEl)
32 (2 x 16)
Electrode Pitch (PEl)
130 µm
Electrode Length (LEl)
1950 µm
Electrode size (DEl), material (EM), probe thickness (T)
25 µm, IrOx, 50 µm
Size of the optional, internal reference electrode
