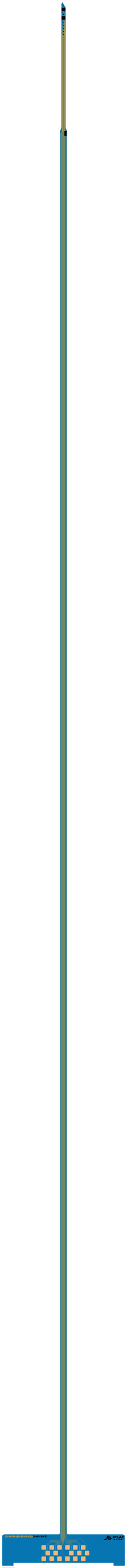

E16RD+R-30-100-S1-L30 NT

Shaft length (LTotal)
30  mm
Number of shafts (NShaft)
1
Shaft pitch (PShaft)
Shaft width (WShaft)
85  µm
Number of electrodes (NEl)
16
Electrode Pitch (PEl)
30  µm x-direction
100 µm y-direction
Electrode Length (LEl)
610  µm
Electrode size (DEl), material (EM), probe thickness (T)
10 µm × 10 µm, 70 µm × 70  µm IrOx, 50 µm
Size of the optional, internal reference electrode
42 × 100  µm2
E16RD+R-30-100-S1-L30 NT

Compatible probe layout

Acute probe layout

Acute
Probe Layout

16-channel PCB (Omnetics) primate assembly
16-channel PCB (Omnetics) primate assembly
16-channel acute, primate, Omnetics
16-channel acute, primate, Omnetics
16-channel acute, primate, Omnetics
16-channel acute, primate, Omnetics
16-channel acute, DIL
16-channel acute, DIL
16-channel acute, DIL
16-channel acute, DIL
Chronic probe layout

Chronic
Probe Layout

16-channel chronic, Omnetics
16-channel chronic, Omnetics
16-channel chronic, Omnetics
16-channel chronic, Omnetics
16-channel chronic, ZIF
16-channel chronic, ZIF
16-channel chronic, ZIF
16-channel chronic, ZIF
Semi-chronic probe layout

Semi-chronic
Probe Layout

16-channel semi-chronic, Omnetics
16-channel semi-chronic, Omnetics
